Buy Industrial Power Fuses and System Protection Supplier, Factory
PU / ESS fuses are products that have been invented to protect the latest developments in the field of energy storage and transition and for that, we takes references from all leading international industry and quality management standards, IEC 60269,GB/T 13539,UL248 and IATF 16949. Determine the following parameters,Rated Voltage,Rated Current,Dimensions and Wiring, overload capacity, shall help you in selecting the correct PU/ ESS fuse for your applicationÂ

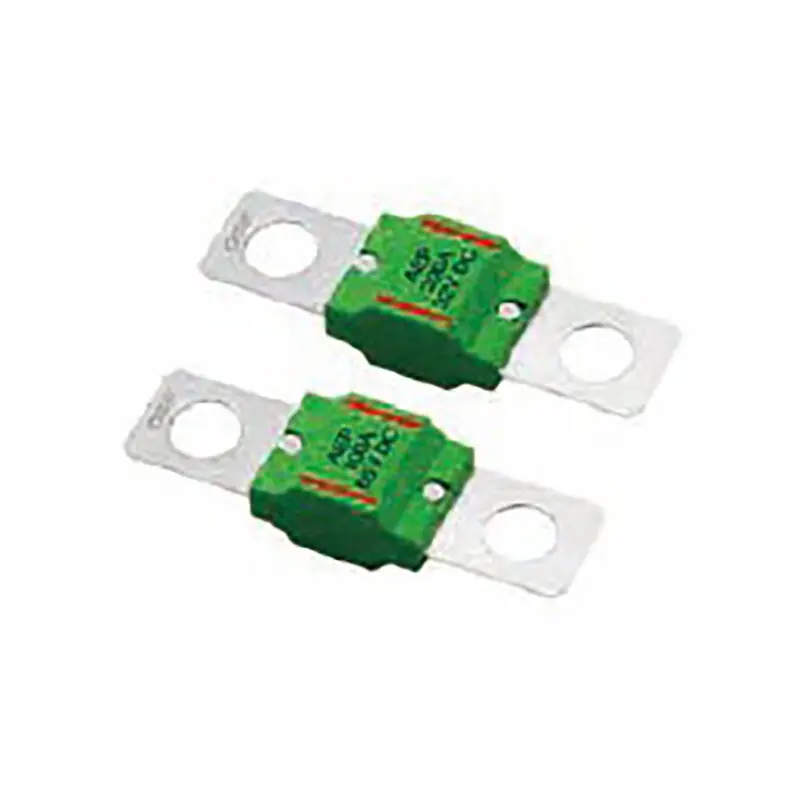

AEP series ESS fuses are engineered and manufactured for use in Industrial ESS and Power Distribution Protection, made from the highest quality materials and tested to the highest standards.
✓ 65 Vdc / 32 Vdc ESS fuse
✓ Rated Current: 20-200 A
✓ Operating Temperature: -40 to 125 °C
✓ Breaking Capacity: 1.0 kA at 65 Vdc / 1.5 kA at 32 Vdc
✓ Installation: M5/M6 bolt installation
✓ Torque: 2.5±0.5N·m

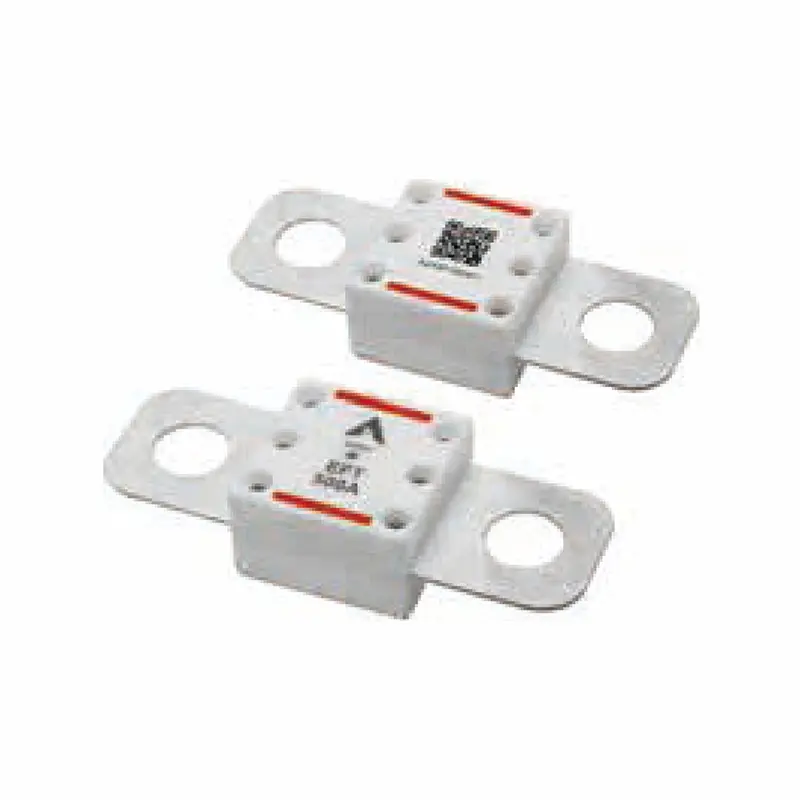

EFT 63/85/125/150/200 Vdc ESS Fuse
EFT series ESS fuses are engineered for industrial protection with high power density. They offer reliable clearing of DC fault currents in an ultra-compact ceramic body design.
✓ Main Body: Ceramic
✓ Rated Current: 100A to 500A
✓ High breaking capacity up to 20kA
✓ Reliable clearing of DC fault currents
✓ Low watt losses
✓ Short Circuit Protection Optimized

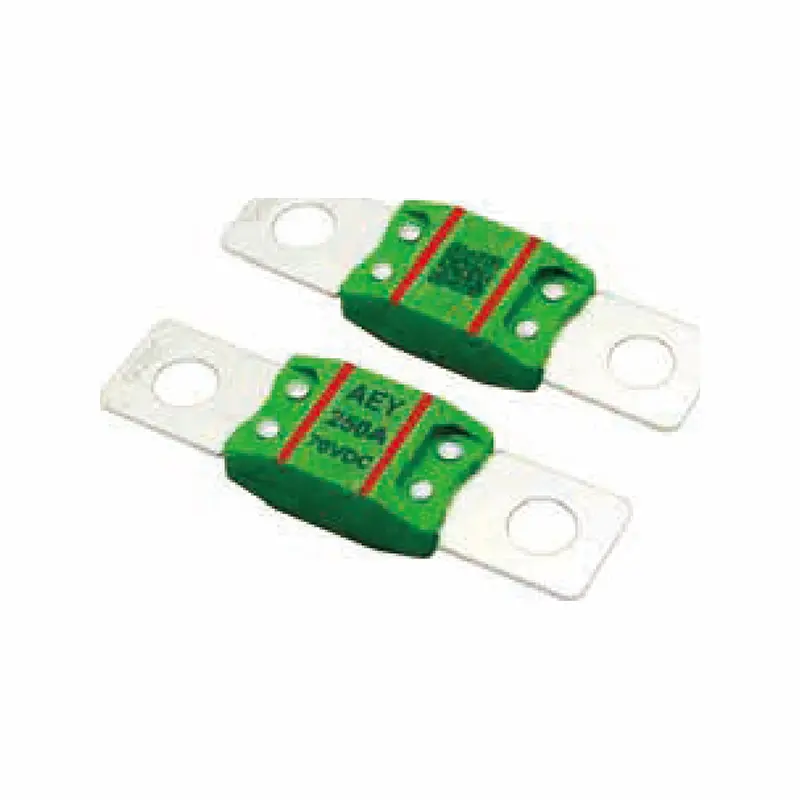

AEY 70 Vdc ESS Fuse
Specifically designed for high-current industrial applications, the AEY series provides robust protection with a 2.5kA breaking capacity at 70 Vdc.
✓ Voltage Rating: 70 Vdc
✓ Rated Current: 40-500A
✓ Operating Temperature: -40 to 125℃
✓ Rated Breaking Capacity: 2.5 kA
✓ Bolt Size: M8 (Torque: 12N·m)
✓ Recommended for BHR series holders
Frequently Asked Questions
What are the primary applications for these ESS fuses?
These fuses are specifically engineered and manufactured for use in Industrial Energy Storage Systems (ESS) and Power Distribution Protection.
What is the operating temperature range for the AEP and AEY series?
Both the AEP and AEY series are designed to operate reliably in extreme environments, with an operating temperature range from -40°C to 125°C.
Which series offers the highest breaking capacity?
The EFT series offers the highest breaking capacity in this range, reaching up to 20kA, making it ideal for high-risk short circuit protection.
What materials are used for the EFT series fuse body?
The EFT series features a high-quality ceramic main body, which provides excellent thermal stability and power density.
What mounting methods are required for installation?
The fuses utilize bolt-on installation methods. The AEP series uses M5 or M6 bolts, while the AEY series requires M8 bolts with a specific torque of 12N·m.
